Cipher Digital 735V SMPTE Time Code Reader: $174.50

click on image to enlarge

click on image to enlarge

click on image to enlarge

click on image to enlarge

click on image to enlarge

click on image to enlarge

Cipher Digital 735V Time Code Reader

Front Panel:
- Status LEDs: Data, Drop FR, Color FR, Error
- Video Mode: Time, User
- Char Display: Off, On, Size
- Frames: On, Off
- Mask: On, Off
- Hold: On, Off
- Position Buttons

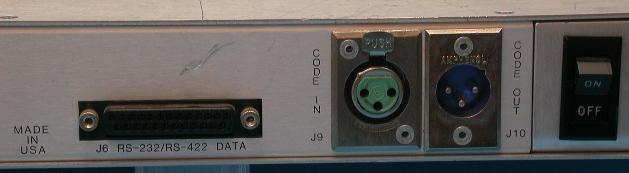

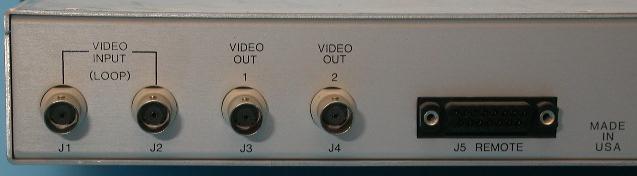

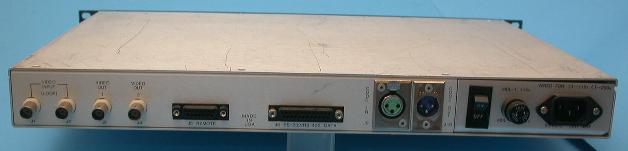

Rear Panel:
- Video Input, Loop through BNC
- Video Out 1 and 2 BNC
- J5 Remote DB9
- J6 RS-232/RS-422 Data
- Code In XLR connector
- Code Out XLR connector
- Power switch
- Power Jack

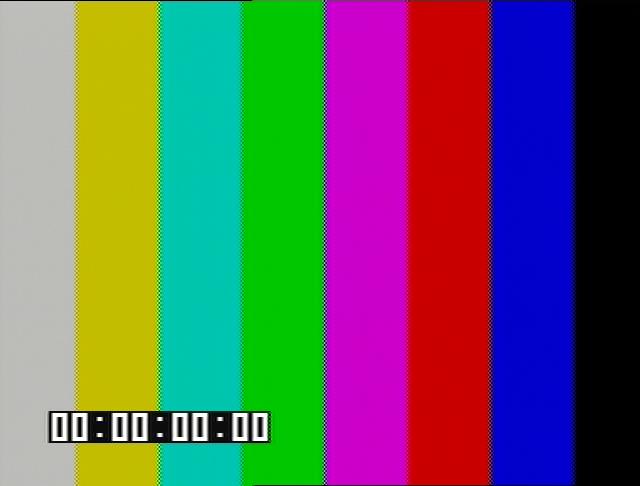

This is a nice Time Code Reader with many features. I connected
the output from a color bar generator and was able to get a
time display to appear on the screen. This was captured on an
SGI Indigo workstation and can be seen in the last picture above.

I found a tape which had time code recorded on one of the audio
tracks. I connected the audio output of the deck to this unit and
and the counter on the screen showed the time code info from the
tape.


No manuals, cables, or accessories are included other than specified
above.


Price:  $174.50
